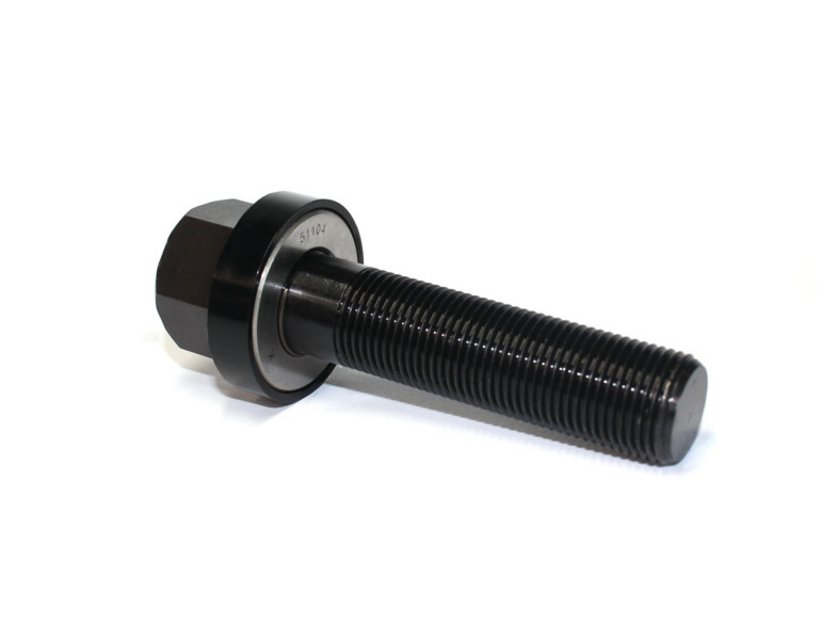

Trekbout voor handbediening

2683-1719-75-00

Trekbout voor handbediening

Productomschrijving

De trekbout wordt bediend door middel van een steeksleutel

Gebruik van de kogellager trekbout vermindert de benodigde kracht met wel 50%.

Technische gegevens

  • Artikelnummer: 2683-1719-75-00
  • Productfamilie: Voor mobiele apparaten
  • Uitvoering: met kogellager
  • Afmeting: 19 x 75 mm
  • Sleutelbreedte: 27 mm

Tip

  • Om voor te boren tot Ø 20 mm is een stappenboor uitermate geschikt.
  • Oliën van de trekbout is noodzakelijk!
  • 1 Trekbout
Ponsen voor trekas Ø 19 mm
2623-0828-30-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 28,3 mm
Max. plaatdikte
Plaatstaal 2 mm
Roestvaststaal 1,5 mm
Draad
Ø 19 mm
PG
PG 21
Ponsen voor trekas Ø 19 mm
2623-0830-50-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 30,5 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0832-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 32 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0832-20-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 32,2 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0834-10-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 34,1 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0835-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
35 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0837-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 37 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
PG
PG 29
Ponsen voor trekas Ø 19 mm
2623-0838-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
38 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0840-20-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 40,2 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0841-20-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 41,2 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0843-30-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 43,3 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0845-50-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 45,5 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0847-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 47 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
PG
PG 36
Ponsen voor trekas Ø 19 mm
2623-0850-20-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 50,2 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0854-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 54 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
PG
PG 42
Ponsen voor trekas Ø 19 mm
2623-0856-50-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 56,5 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0860-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 60 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
PG
PG 48
Ponsen voor trekas Ø 19 mm
2623-0863-20-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 63,2 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0864-40-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 64,4 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0866-60-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 66,6 mm
Max. plaatdikte
Plaatstaal 3 mm
Roestvaststaal 2 mm
Draad
Ø 19 mm
Ponsen voor trekas Ø 19 mm
2623-0870-00-00
Ponsen voor trekas Ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 70 mm
Max. plaatdikte
Plaatstaal 2 mm
Roestvaststaal 1,5 mm
Draad
Ø 19 mm
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0828-50-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 28,5 mm
Max. plaatdikte
Roestvaststaal 2 mm
Draad
Ø 19 mm
PG
PG 21
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0830-50-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 30,5 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0832-20-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 32,2 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0837-00-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 37 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
PG
PG 29
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0840-20-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 40,2 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0847-00-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 47 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
PG
PG 36
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0850-20-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 50,2 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0854-00-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 54 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
PG
PG 42
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0860-00-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 60 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
PG
PG 48
Ponsen Plus "RVS" voor trekas ø 19 mm
2682-0863-20-25
Ponsen Plus "RVS" voor trekas ø 19 mm
Productfamilie
Voor mobiele apparaten
Afmeting
ø 63,2 mm
Max. plaatdikte
Roestvaststaal 2,5 mm
Draad
Ø 19 mm
Ponsset met metrische ponsen van M12 tot M50
2623-7812-50-00
Ponsset met metrische ponsen van M12 tot M50
Productfamilie
Voor mobiele apparaten
Afmeting doorsnede
metrisch: metrische ponsen in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. plaatdikte
plaatstaal 3 mm
Draad
ø 9,5 mm / ø 19 mm
Variant
zonder trekassen
Ponsset met metrische ponsen van M12 tot M50
2683-7812-50-20
Ponsset met metrische ponsen van M12 tot M50
Productfamilie
Voor mobiele apparaten
Afmeting doorsnede
metrisch: metrische ponsen in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. plaatdikte
plaatstaal 3 mm
Draad
ø 9,5 mm / ø 19 mm
Variant
met trekassen
Ponsset met ponsen van PG7 tot PG48 + ø 30,5 mm
2623-7812-60-00
Ponsset met ponsen van PG7 tot PG48 + ø 30,5 mm
Productfamilie
Voor mobiele apparaten
Afmeting doorsnede
PG-ponsen in PG: 7;9;11;13;16;21;29;36;42;48 en ø 30,5 mm
Max. plaatdikte
plaatstaal 3 mm
Draad
ø 9,5 mm / ø 19 mm
Variant
zonder trekassen
Ponsset met ponsen van PG7 tot PG48 + ø 30,5 mm
2683-7812-60-30
Ponsset met ponsen van PG7 tot PG48 + ø 30,5 mm
Productfamilie
Voor mobiele apparaten
Afmeting doorsnede
PG-ponsen in PG: 7;9;11;13;16;21;29;36;42;48 en ø 30,5 mm
Max. plaatdikte
plaatstaal 3 mm
Draad
ø 9,5 mm / ø 19 mm
Variant
met trekassen
Plaatboor
2631-0200-15-42
Plaatboor
Productfamilie
Voor mobiele apparaten
Afmeting
8 - 20 mm
Max. plaatdikte
Plaatstaal 0,1-2 mm / Roestvast staal 0,1-1 mm / Aluminium 0,1-5 mm / Kunststof tot 10 mm
Materiaal
HSS
Plaatboor
2631-0305-15-43
Plaatboor
Productfamilie
Voor mobiele apparaten
Afmeting
4 - 30,5 mm
Max. plaatdikte
Plaatstaal 0,1-2 mm / Roestvast staal 0,1-1 mm / Aluminium 0,1-5 mm / Kunststof tot 10 mm
Materiaal
HSS
Plaatboor gecoat
2631-0200-35-42
Plaatboor gecoat
Productfamilie
Voor mobiele apparaten
Afmeting
8 - 20 mm
Max. plaatdikte
Plaatstaal 0,1-2 mm / Roestvast staal 0,1-1 mm / Aluminium 0,1-5 mm / Kunststof tot 10 mm
Materiaal
HSS-TiAlN
Plaatboor gecoat
2631-0350-35-43
Plaatboor gecoat
Productfamilie
Voor mobiele apparaten
Afmeting
4 - 30,5 mm
Max. plaatdikte
Plaatstaal 0,1-2 mm / Roestvast staal 0,1-1 mm / Aluminium 0,1-5 mm / Kunststof tot 10 mm
Materiaal
HSS-TiAlN
Plaatboorset
2631-7800-15-45
Plaatboorset
Productfamilie
Voor mobiele apparaten
Afmeting
3-14 mm, 8-20 mm, 16-30,5 mm
Max. plaatdikte
Plaatstaal 0,1-2 mm / Roestvast staal 0,1-1 mm / Aluminium 0,1-5 mm / Kunststof tot 10 mm
Materiaal
HSS
Boorpasta
2631-0600-15-49
Boorpasta
Afmeting
ø 29x91 mm
Snijolie
2684-0700-25-00
Snijolie
Cilinderinhoud
0,25 Liter
Ponsset met metrische ponsen van M12 tot M50
2683-7812-50-20
Ponsset met metrische ponsen van M12 tot M50
Productfamilie
Voor mobiele apparaten
Afmeting doorsnede
metrisch: metrische ponsen in mm: ø 12,2; 16,2; 20,2; 25,2; 32,2; 40,2; 50,2
Max. plaatdikte
plaatstaal 3 mm
Draad
ø 9,5 mm / ø 19 mm
Variant
met trekassen
Ponsset met ponsen van PG7 tot PG48 + ø 30,5 mm
2683-7812-60-30
Ponsset met ponsen van PG7 tot PG48 + ø 30,5 mm
Productfamilie
Voor mobiele apparaten
Afmeting doorsnede
PG-ponsen in PG: 7;9;11;13;16;21;29;36;42;48 en ø 30,5 mm
Max. plaatdikte
plaatstaal 3 mm
Draad
ø 9,5 mm / ø 19 mm
Variant
met trekassen
Opslaan als PDF Opslaan als PDF Directe vraag
Contact
Vind je persoonlijke contactpersoon
We zijn er voor jou

Geoptimaliseerde behuizingen en kasten worden niet aan de lopende band gemaakt, maar in samenspraak met u. Bent u er klaar voor?
Spreek dan meteen met uw persoonlijke häwa adviseur.

Kies nu een adviseur

Empfangsmitarbeiterin Frau Sproll. Empfangsmitarbeiterin Frau Sproll.
